TOPAZ®16 is a 16-channel, portable phased array ultrasonic testing, or PAUT, device for non-destructive testing (NDT) projects. Optimally designed for oil & gas, power generation, manufacturing, and transportation inspection applications, TOPAZ16 delivers best-in-class productivity with unmatched value.
Eddyfi Technologies has always had a reputation as a premier products supplier of NDT solutions. TOPAZ16 offers entry into mainstream inspection markets for the most common applications including weld inspection and corrosion mapping.
Details
Benefits
- Phased array up to 16/128 with 1x conventional UT channel
- Multiple probe capability with splitter (2x PA+ 2x TOFD)
- Unlimited groups
- Up to 256 focal laws
- Maximum PRF of 12kHz
- Available with ZPAC or IPEX connector
Applications
- Thin weld multi-probe configurations
- Corrosion mapping
- Composite inspections
- Encoded or manual inspections
- Complex component inspections
Want to see TOPAZ16 in action? Book a demo!

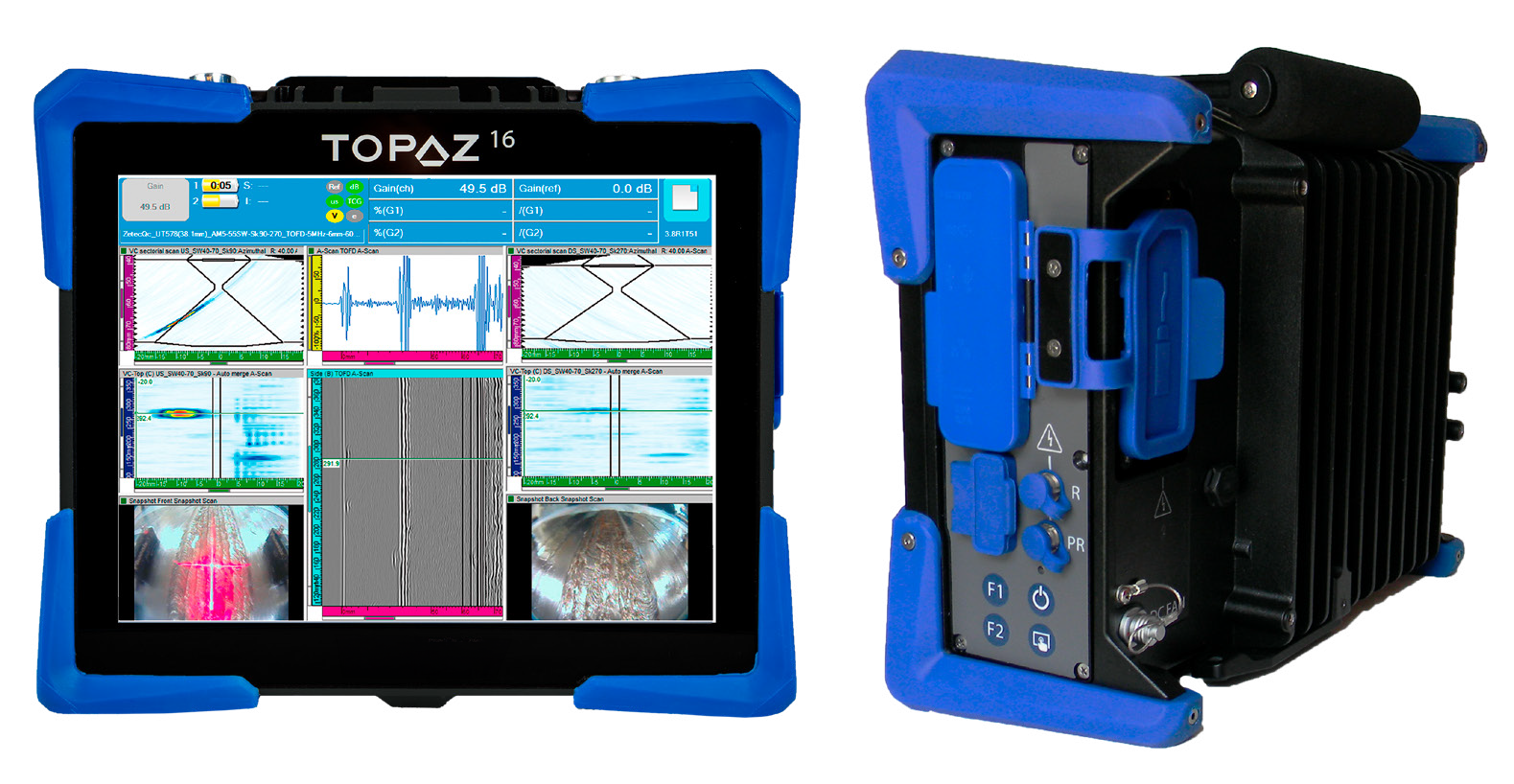

Built to Go Anywhere
TOPAZ16 is compact and lightweight in a robust aluminum casing with no air intake. The full metallic housing improves durability and thermal transfer efficiency. Plus, the unit weighs only 4.5 kilograms (10 pounds).
With a leading-class operating temperature range, 264-millimeter (10.4-inch) high-resolution multi-touch display, and hot-swappable batteries, TOPAZ16 is built to meet a wide range of inspection demands regardless of the environment.
TOPAZ16 portable 16 channel phased array is available in two versions:
- 16/64 – Featuring up to 16 active channels on up to 64 element probes
- 16/128 – Featuring up to 16 active channels on up to 128 element probes for enhanced inspection capabilities.
Powered by UltraVision Software
TOPAZ16 includes this powerful software onboard. Leverage a single software platform across the entire family of Eddyfi Technologies' UT products, saving valuable training time and enabling new levels of system synergies. Benefit from powerful features including:
- Embedded advanced focal law calculator with visual feedback
- Onboard volumetric merge and measurement tools
- Interactive help onboard the instrument
- Remote control capabilities.
Visit the UltraVision Touch page to learn more about the software features.
Increased Productivity
Temperature operating range: You can take full advantage of all the power of TOPAZ16 from -10 to 45 degrees Celsius (14 to 113 degrees Fahrenheit). Add the optional fan kit and TOPAZ16 delivers in environments up to 53 degrees Celsius (127 degrees Fahrenheit). TOPAZ16 is built to meet your specific needs no matter how harsh the environment.
264mm/10.4in high-resolution multi-touch display: TOPAZ16 features a very wide, highly responsive multi-touch screen that not only offers high-resolution but also one of the largest display-to-instrument footprint ratios. With TOPAZ16, you can see more data more clearly whether inside or outdoors.
High signal quality: With digitizing up to 800% and 16-bit amplitude resolution, TOPAZ16 provides the signal quality you need with less chance of saturation.
Multi-probe and multi-group support: The TOPAZ16 makes weld inspections simple with the optional probe splitter accessory.
Unmatched Value
TOPAZ16 delivers big value in a small footprint. From preparation to reporting, TOPAZ16 is the complete solution. This fully integrated and simplified approach can reduce the amount of equipment needed to perform an inspection.
Fully Integrated Inspection Process
TOPAZ16 can handle all steps in an inspection process, helping to lower costs thanks to:
Preparation: Specimen editor and focal law calculator helps make setups simple.
Acquisition: TOPAZ16 has the features that deliver a highly efficient data acquisition process.
Analysis: Full suite of basic and advanced tools onboard for a more efficient and effective analysis.
Reporting: TOPAZ16 is ready to print standard or custom reports in a touch.
Seamless Setup with Eddyfi Technologies' Scanners and Probes
Getting started with TOPAZ16 couldn’t be easier. When any Eddyfi Technologies' scanner such as the award-winning NDT PaintBrush, Weld Crawler, or probe is connected, TOPAZ16 can automatically recognize and preconfigure the inspection sequence accordingly, saving valuable time. More flexibility to meet your needs:
- Multiple scanning configurations: sector, linear, and compound
- One dedicated UT channel: a separate conventional UT channel offers 200v pulser and works in P/E or P/C configurations for TOFD examinations
- Fast and safe data transfer: TOPAZ16 features an internal solid-state drive (SSD) for quick, reliable data transfer and storage during operation
- Numerous connectivity options: TOPAZ16 has the connectivity options you need and includes one USB 3.0 port (delivering 10x speed improvement vs. USB 2.0), two USB 2.0 ports, Gigabyte LAN, HDMI, plus one UT channel and a PA UT connector
- IPEX and ZPAC connector options available.
Exclusive Content
Weld Solution Demo
Corrosion Solution Demo
Specifications
INSTRUMENT
271 × 221 × 120 mm (10.6 × 8.7 × 4.7 in)
4.5 kg (10 lb)
264 mm (10.4 in) wide, 1024 x 768 pixels
No
Yes
256 GB SSD
Compliant with ISO 18563-1 / EN 12668-1
ENVIRONMENT
Designed for IP66
-10C to 45C (14F to 113F), with external fan kit: up to 53C (127F)
-40C to 70C (-40F to 158F)
80% non-condensing
CONNECTIVITY
ZPAC or IPEX
HDMI
Ethernet 1000 Base-T, 1x USB 3.0, 2 x USB 2.0
PHASED ARRAY
16/64 or 16/128
1 P/E or 1 P/C
16 bits
4 + 1 synchronization gate
12 kHZ
1, 2, 4, 8, 16
105v PA UT/ 215v UT
75v PA UT / 200v UT
from 0.5 to 18 MHz
Digital
Analog/Digital (FIR)
Digital
Yes
Yes (with Eddyfi Technologies' probe ID chip)
Yes (with Eddyfi Technologies' ID chip)
256
8,192
300MB for 16/64 version, 700MB for 16/128 version
2 quadrature-type
